Detailed Guide to Cell Transport Flow Chart Solutions for Study Tasks

Prioritize verifying each directional step by matching molecule movement with concentration gradients; this prevents misalignment within the instructional diagram. Cross-check the placement of passive and ATP-driven routes by confirming whether the mechanism relies on protein gates or carrier shifts.

Rely on measurable criteria such as gradient slope, energy input, and gate specificity. These indicators allow rapid identification of incorrect segments and support precise reconstruction of the schematic used in class assignments.

Apply step-by-step validation by comparing ion placement, water balance scenarios, and protein involvement. This approach helps refine interpretations of pathway sequences without depending on rote recall.

Use process markers–including direction arrows, substrate labels, and energy tags–to confirm that each part of the diagram reflects the correct biological event. These markers reduce ambiguity and ensure consistent interpretation across different worksheets.

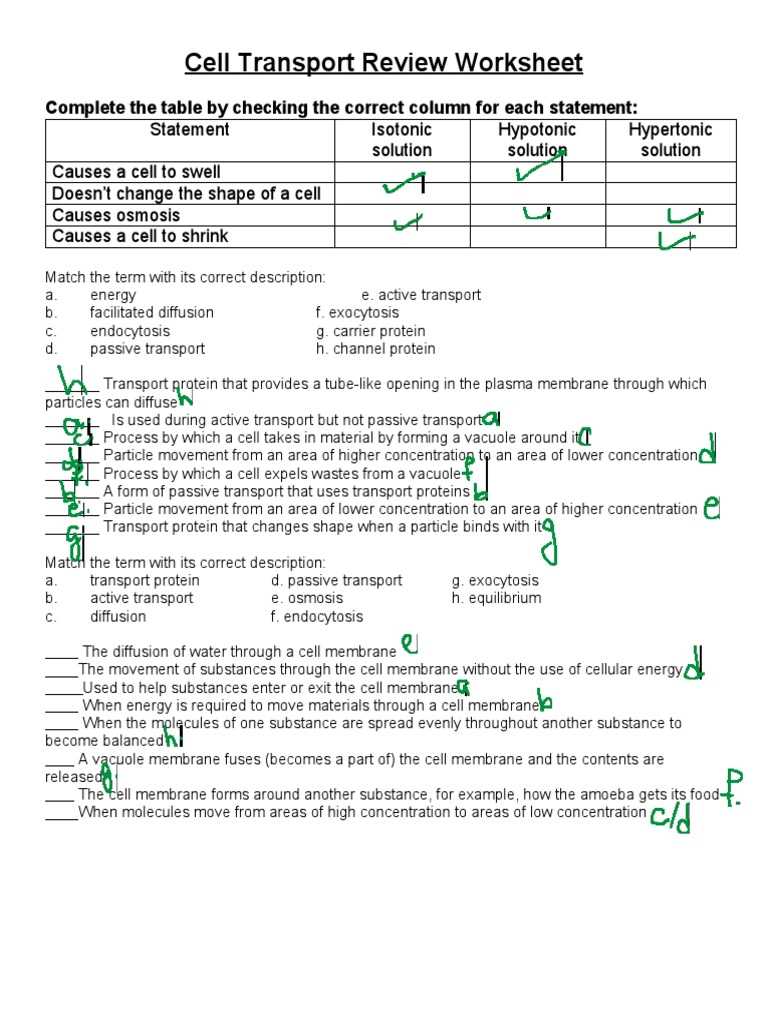

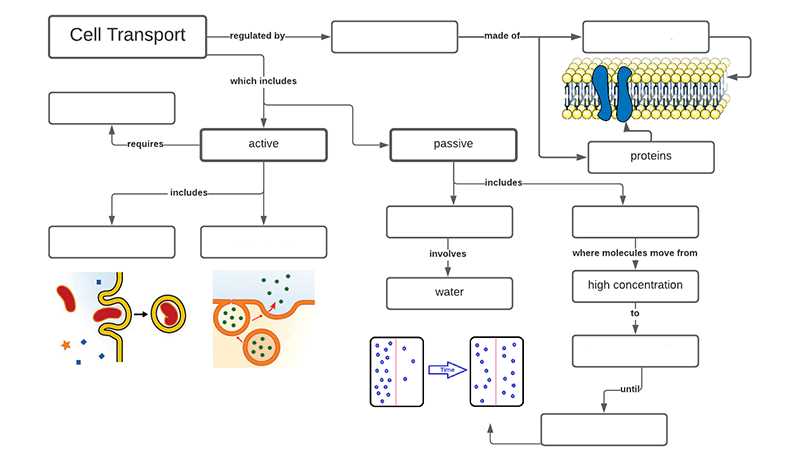

Cell Transport Flow Chart Reference Guide

Verify each pathway by matching molecule direction with gradient shifts and energy tags; this prevents misplacement of passive or ATP-driven routes within the schematic. Use structural cues–protein gates, substrate labels, and arrow orientation–to confirm that each segment aligns with the biological mechanism it represents.

• Compare concentration values on both sides of the membrane to determine whether the route is diffusion-based or energy-dependent.
• Check whether the diagram uses channel symbols or carrier shapes to distinguish open-path movement from gated transitions.
• Match ATP indicators with steps requiring energy input; absence of an energy tag signals a passive route.
• Inspect water pathways separately by looking for osmotic markers such as volume shifts or hydrostatic references.

Rely on recurring diagram markers–ion charges, polarity notes, and gate width–to refine interpretation and avoid incorrect mapping of directional steps. These cues allow rapid identification of mismatched segments and support accurate reconstruction of worksheet sequences.

1. Locate all gradient indicators before examining directional arrows.
2. Group related routes (diffusion, gated movement, ATP-driven shifts) to avoid mixing mechanisms.
3. Confirm that each substrate’s route aligns with its known polarity or size restrictions.
4. Cross-check energy labels with protein structures to ensure consistency within the schematic.

Passive Transport Pathways Mapped Step by Step

Use concentration differences as the primary guide: molecules move from zones of higher abundance to regions of lower abundance without external energy.

1. Osmosis

   • Confirm presence of a semi-permeable membrane restricting solutes but allowing water molecules to pass.
   • Measure solute gradients; water moves toward the side with greater solute density.
   • Track volume shifts to predict pressure changes on the plasma boundary.

2. Simple Diffusion

   • Select small, non-polar molecules; they traverse the membrane’s lipid region directly.
   • Evaluate gradient magnitude; larger differences yield faster passage.
   • Monitor equilibrium point as movement diminishes once levels equalize.

3. Facilitated Passage via Channels

   • Identify gated or open conduits specific to ions or polar compounds.
   • Check whether gates respond to voltage shifts or ligand binding.
   • Record movement rate; channel pores allow rapid transfer of small charged particles.

4. Facilitated Passage via Carriers

   • Match each carrier protein to its target molecule; specificity is narrow.
   • Observe conformational change cycles as molecules bind and are released on the opposite side.
   • Assess saturation; once all carriers are occupied, rate plateaus.

Apply these steps to map passive movement routes with precise attention to gradients, membrane traits, and protein-mediated passage mechanisms.

Active Transport Sequences and Ion Pump Actions

Use ATP hydrolysis as the trigger: without phosphorylation, directional movement against gradients will not proceed.

Stage	Action	Operational Detail
1	Substrate Binding	Confirm that the pump’s inward-facing pocket captures specific ions before ATP attachment.
2	ATP Attachment	Introduce ATP directly to the cytosolic domain; phosphorylation resets the protein’s shape.
3	Conformation Shift	Observe rotation toward the outer side; bound ions move to the release zone.
4	Ion Release	Record the discharge of ions into the external region as affinity decreases sharply.
5	Return Cycle	Track dephosphorylation; the pump restores its inward orientation for another round.

Configure ion pumps by matching substrate type with the correct carrier; sodium–potassium exchangers require three Na⁺ exports per two K⁺ imports per ATP. Maintain Mg²⁺ availability to support ATP reactions and verify membrane polarity to prevent reverse cycling.

Comparing Carrier vs. Channel Protein Roles in Diagrams

Depict carriers and pores side by side, emphasising their different mechanisms and kinetics.

Feature	Carrier Proteins	Channel Proteins
Mechanism	Bind a specific substrate, undergo conformational shift to shuttle it across a barrier. :contentReference[oaicite:0]{index=0}	Form aqueous pore that allows diffusion of ions or small polar molecules through a continuous path. :contentReference[oaicite:1]{index=1}
Directionality	Can work down a gradient (facilitated) or against it (active). :contentReference[oaicite:2]{index=2}	Only permit movement down the electrochemical gradient. :contentReference[oaicite:3]{index=3}
Rate	Slower, because each substrate binding demands a structural rearrangement. :contentReference[oaicite:4]{index=4}	Very fast, up to millions of ions per second when pore is open. :contentReference[oaicite:5]{index=5}
Saturation	Shows classic saturation kinetics: once binding sites full, rate plateaus. :contentReference[oaicite:6]{index=6}	No true saturation in the same sense; flux depends more on pore number and open probability. :contentReference[oaicite:7]{index=7}
Energy dependence	Can use metabolic energy (e.g. ATP) for uphill movement. :contentReference[oaicite:8]{index=8}	No direct energy consumption, purely passive diffusion. :contentReference[oaicite:9]{index=9}
Specificity	High: binding pocket tailored to particular molecules (e.g. glucose, ions). :contentReference[oaicite:10]{index=10}	Selectivity based on pore size and charge; less “locking in” than carriers. :contentReference[oaicite:11]{index=11}

Use illustrations that label each type clearly: show a carrier alternating between inward- and outward-facing states, and a channel as a tunnel with gating elements (ligand-gated, voltage-gated, etc.). Annotate diagrams with real-world examples (e.g. Na⁺/K⁺ ATPase for carrier; aquaporin or sodium channel for pore). For a detailed reference, see the NCBI resource on membrane protein classes. :contentReference[oaicite:12]{index=12}

::contentReference[oaicite:13]{index=13}

Osmosis Pathway Mapping with Tonicity Scenarios

Use solute gradients as the decisive factor: water shifts toward the side with higher dissolved-particle density until equilibrium is approached.

Apply these tonicity setups to predict directional movement:

• Hypotonic Medium – External solute level is below the internal value; water enters, raising internal volume and tension on the boundary.
• Isotonic Medium – Solute levels match; net movement is negligible, though individual molecules continue to cross.
• Hypertonic Medium – External solute level exceeds the internal value; water exits, reducing internal volume.

Use these criteria to refine diagram annotations:

• Mark the semi-permeable barrier and indicate which side has greater osmotic pull.
• Specify solute concentration values (e.g., 0.9% NaCl vs. 10% sucrose) to define the severity of water displacement.
• Show directional arrows only for water, not solutes, unless carriers or pores for those particles are included separately.

Integrate quantitative checks:

• Compare osmotic pressure using π = iCRT to estimate magnitude of water shift.
• Include internal and external osmolarity (e.g., 300 mOsm vs. 500 mOsm) to predict swelling or shrinkage.
• Note that temperature changes modify osmotic pressure; adjust diagram labels if scenarios require thermal variation.

Facilitated Diffusion Routes and Substrate Checks

Use gradient magnitude as the selector: higher external abundance accelerates substrate entry through specific conduits or carriers.

Apply substrate verification steps:

• Confirm molecular polarity; hydrophilic compounds require a protein-based path.
• Check ionic radius and charge to match the correct pore type.
• Assess binding specificity if the route involves a carrier that toggles between inward- and outward-facing states.

Define route characteristics clearly:

• Channels provide uninterrupted passage; opening probability regulates throughput.
• Carriers undergo structural shifts; saturation appears once all binding pockets are occupied.
• Voltage-gated or ligand-gated pores adjust access based on membrane potential or chemical signals.

Integrate measurable factors:

• Record maximum rate (Vmax) for carrier-mediated steps to determine when increased gradient no longer boosts flux.
• Monitor conductance values for ion pores to estimate throughput under defined potential differences.
• Include osmolarity context if water-linked solute ratios influence direction or pace of movement.

ATP Involvement Markers in Transport Schematics

Use phosphorylation symbols directly adjacent to protein domains to indicate where ATP binds and transfers its terminal phosphate.

Apply these notation steps:

• Place “ATP → ADP + Pi” near the cytosolic face of the protein to pinpoint the activation step.
• Highlight the catalytic loop that undergoes shape change once phosphate attaches.
• Show the dephosphorylation site separately to distinguish the reset phase.

Strengthen diagram accuracy with quantitative labels:

• Annotate ATP consumption rate (e.g., 1 ATP per transport cycle) beside the protein structure.
• Indicate ion ratios moved per hydrolyzed ATP if the process includes coupled exchange.
• Add Mg²⁺ requirement tags to signify cofactor dependence for ATP reactions.

Refine directional cues:

• Use distinct arrow colors or patterns only for ATP-driven stages, not for passive steps.
• Mark the conformational transition as two discrete states, each tied to a phosphorylation status.
• Include a small timer icon or numeric estimate to indicate the duration of the ATP-bound phase.

Common Student Misplacements in Flow Steps Corrected

Place gradient verification first: students often skip confirming whether solute or water movement follows abundance differences.

• Correct the sequence by checking internal versus external concentration values before assigning any directional arrows.
• Avoid placing protein-mediated steps before determining if passive movement alone explains the scenario.
• Keep ATP-related notes only in sections involving uphill movement; students frequently attach ATP labels to passive pathways.

Fix protein misidentification:

• Reassign channels to ion or water routes; learners often put glucose on a pore rather than a carrier.
• Shift carrier icons to positions that require substrate binding and shape change; some drafts show carriers acting like open pores.
• Restrict gated-pore symbols to voltage or ligand conditions; random gate placement introduces inaccurate triggers.

Correct tonicity placement:

• Label hypotonic, isotonic, and hypertonic sections strictly by solute comparison; errors arise from judging by water content instead of solute levels.
• Move swelling and shrinking notes to the correct compartment; mixing these leads to reversed diagram outcomes.
• Insert osmolarity values next to each region; missing numbers causes misordered steps when mapping direction.

Verification Methods for Diagram-Based Transport Tasks

Confirm gradient direction first: compare internal and external solute levels to determine whether movement should proceed passively or require ATP-driven assistance.

1. Check Concentration Values

   • Record molarity or osmolarity for each region; mismatched numbers flag incorrect arrows.
   • Ensure water movement aligns with the side holding greater solute density.
   • Reject diagrams that show movement against a gradient without ATP markers.

2. Validate Protein Selection

   • Assign channels to ions and small polar substrates only.
   • Match carriers to larger molecules requiring binding and structural shift.
   • Inspect gating conditions; voltage or ligand dependence must be stated explicitly.

3. Confirm ATP Use

   • Look for phosphorylation symbols where ATP binds and releases Pi.
   • Verify the stated ion ratio moved per ATP hydrolyzed.
   • Reject ATP labels placed next to passive routes.

4. Assess Tonicity Interpretation

   • Compare solute concentration, not water volume, to assign hypo-, iso-, or hyper- setups.
   • Check whether swelling or shrinkage notes match the correct side.
   • Require numerical values rather than relying on color shading or symbols alone.

5. Cross-Reference Movement Rates

   • Confirm saturation behavior for carriers; high substrate levels should not increase the rate once binding sites are filled.
   • Check conductance values for ion pores under stated voltage differences.
   • Flag diagrams showing identical speeds for pore-based and carrier-based routes.
