Understanding the Correct Notation for Atomic Particle Distribution

To determine the proper placement of particles within an atom, follow these steps: First, identify the total number of particles based on the element’s atomic number. Next, begin by filling the lowest energy level first, progressing to higher levels as needed. Each energy level can hold a specific number of particles: the first holds 2, the second holds 8, the third holds 18, and so on. Ensure that each orbital is filled according to the correct sequence of energy levels.

When representing the placement of particles, use the appropriate notation for each energy level and sublevel. The notation typically includes letters (s, p, d, f) to represent sublevels, with numbers indicating the specific energy level. Fill orbitals by following the Pauli Exclusion Principle and Hund’s Rule, ensuring no more than two particles per orbital and maximizing the number of unpaired particles in degenerate orbitals.

Check your notation by verifying if the total number of particles corresponds with the atomic number of the element. This ensures the diagram is accurate and reflects the element’s true atomic structure. By practicing these principles, you can build an accurate representation of any element’s atomic structure, aiding in understanding its chemical properties and behavior.

How to Write Electron Configurations for Different Elements

To write the correct notation for the arrangement of particles in an atom, follow these steps:

Determine the Atomic Number: This number represents the total amount of particles in the atom, which corresponds to the number of negatively charged particles in a neutral atom.

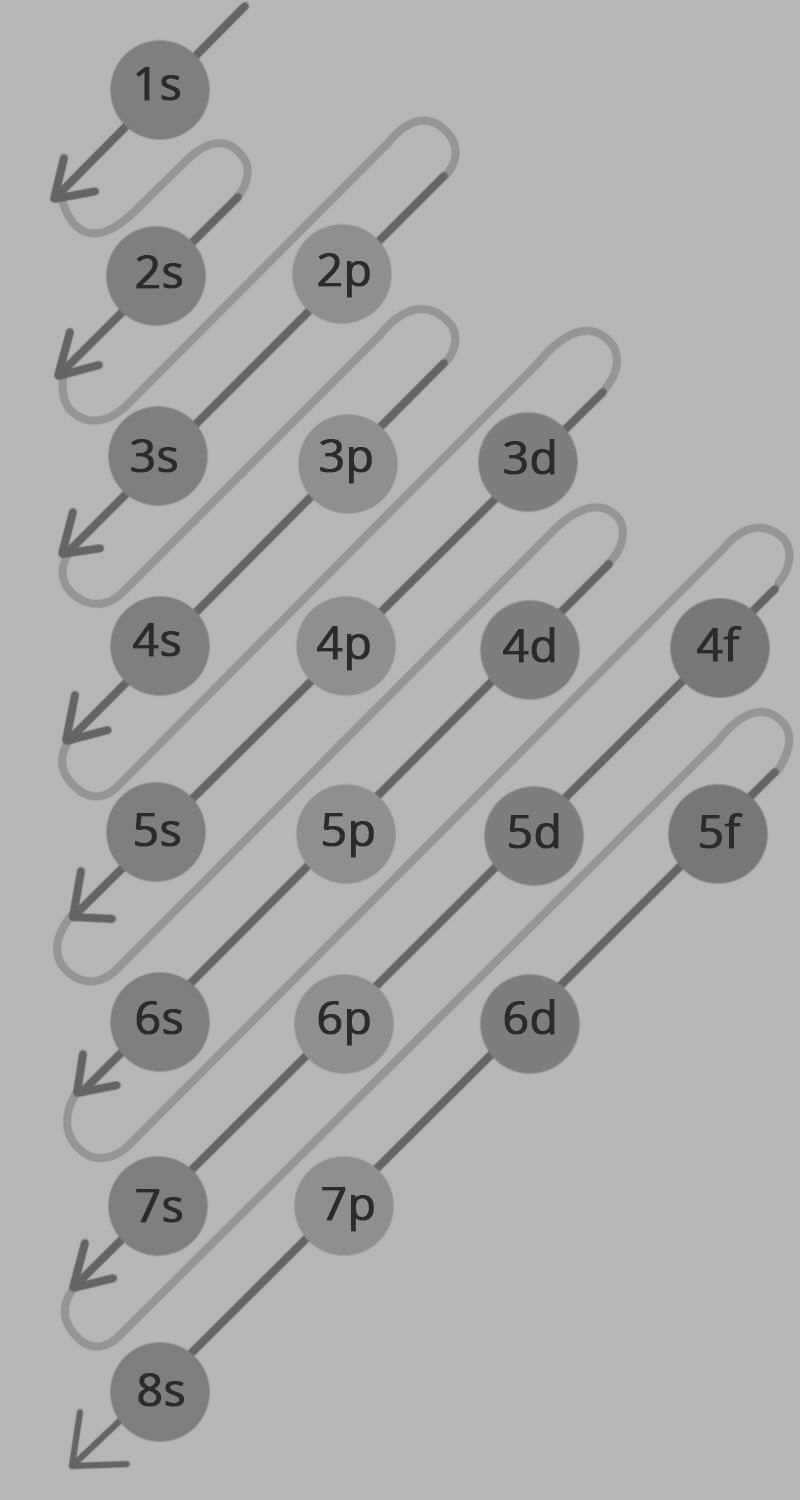

Fill the Energy Levels: Begin by filling the lowest energy levels first. Use the Aufbau principle to ensure the correct order: 1s, 2s, 2p, 3s, 3p, 4s, 3d, 4p, etc. Each level can hold a specific number of particles: the first can hold 2, the second can hold 8, the third can hold 18, and the fourth can hold 32.
Apply the Pauli Exclusion Principle: Each orbital within a given energy level can hold a maximum of two particles, and they must have opposite spins. Represent this by placing an arrow in each orbital (↑↓).
Use Hund’s Rule for Degenerate Orbitals: In orbitals of equal energy (such as 2p, 3p), fill each orbital with one particle before pairing them. This maximizes unpaired particles in degenerate orbitals.
Write the Notation: Represent the configuration as a series of numbers and letters. For example, for an oxygen atom (atomic number 8), the configuration is 1s² 2s² 2p⁴.
Check for Correctness: After writing the notation, ensure the total number of particles matches the atomic number. Double-check the energy levels, sublevels, and the number of particles placed in each orbital.

Repeat these steps for any element, adjusting the particle distribution based on its atomic number. This method applies to all elements across the periodic table.

Understanding the Aufbau Principle in Orbital Diagrams

The Aufbau principle dictates the order in which particles occupy different energy levels and sublevels. Begin by filling the lowest energy orbitals first before moving to higher energy levels. This principle ensures that particles fill orbitals in a way that minimizes the atom’s total energy.

For example, in a simplified energy diagram, the 1s orbital is filled first, followed by 2s, then 2p, and so on. The order is determined based on the increasing energy of the orbitals, which follows the sequence:

It’s important to note that the 4s orbital is filled before the 3d, even though 3d is lower in energy. This occurs because the 4s orbital is lower in energy when the atom is in its ground state.

By following the Aufbau principle, you ensure that electrons occupy the orbitals in a way that minimizes the atom’s energy, which is crucial for understanding how atoms interact with other atoms and form chemical bonds.

Determining the Number of Valence Electrons for an Element

To determine the number of valence particles for any element, look at its position in the periodic table. The number of valence particles corresponds to the group number for main-group elements (Groups 1, 2, 13-18). For example, elements in Group 1 have 1 valence particle, while elements in Group 17 have 7 valence particles.

For transition metals (Groups 3-12), determining the exact number of outermost particles is more complex because of the involvement of d-orbitals. However, they generally have between 1 and 2 valence particles.

Follow these steps to identify the number of outermost particles:

Locate the element’s group number on the periodic table.
If it’s a main-group element, use the group number to determine the number of outermost particles.
If it’s a transition metal, refer to its electron filling order to count the number of electrons in the outermost shell.

For example, oxygen (O) is in Group 16, so it has 6 outermost particles, while sodium (Na) in Group 1 has 1 outermost particle. Understanding this is vital for predicting chemical behavior and bonding patterns.

Using the Pauli Exclusion Principle to Interpret Electron Placement

The Pauli Exclusion Principle states that no two particles can occupy the same quantum state within an atom simultaneously. This rule is critical when determining the arrangement of particles in various energy levels and subshells.

To apply this principle, start by recognizing that each shell can hold a specific number of particles. Each orbital can accommodate a maximum of two particles, one with an “up” spin and one with a “down” spin. This pairing ensures that no two particles within the same orbital have identical quantum numbers.

For example, in the 1s subshell, only two particles can be placed, one with spin up and one with spin down. When moving to the next subshell, 2s, the same principle applies: two particles, but each must have different spins to comply with the Pauli Exclusion Principle.

This principle also helps to explain the filling order of orbitals in multi-electron atoms. Particles will fill the lowest energy orbitals first, with the exclusion principle ensuring that no more than two particles occupy the same orbital at once, with opposite spins.

In cases of partially filled orbitals, the Pauli Exclusion Principle guides how particles are distributed across orbitals within a given subshell. This process is integral in understanding chemical bonding, as the arrangement of these particles affects how atoms interact with each other.

How to Represent Electron Configurations in Orbital Diagrams

To depict the arrangement of particles in different shells and subshells, begin by drawing a set of horizontal lines representing the orbitals. Each line will represent a specific type of subshell, such as s, p, d, or f, arranged according to increasing energy levels.

Each orbital line should contain boxes or arrows that represent the individual particles. For the s subshell, draw one line, and for p, d, and f subshells, draw three, five, and seven lines, respectively. These lines indicate the number of orbitals within each subshell.

Each arrow inside the boxes represents a particle with either “up” or “down” spin. Follow the rule that no two arrows in the same orbital can have identical spins. Begin filling each orbital with one “up” spin arrow before placing a “down” spin arrow in the same orbital. This ensures compliance with the Pauli Exclusion Principle.

The order in which orbitals are filled follows the Aufbau principle, which states that the lowest energy orbitals are filled first. Start from the 1s orbital and continue to higher energy orbitals (2s, 2p, 3s, etc.), respecting the maximum number of particles each orbital can hold: two for s orbitals, six for p orbitals, ten for d orbitals, and fourteen for f orbitals.

Once all orbitals are filled, check the diagram for consistency with the number of particles in the atom. The number of arrows placed in the orbitals should correspond to the total number of particles in the atom, and the placement should follow the principles outlined above to reflect the atom’s proper electronic structure.

Common Mistakes to Avoid When Drawing Orbital Diagrams

1. Incorrect Order of Filling Orbitals: Always follow the correct order when placing particles in orbitals. Fill orbitals in order of increasing energy, starting with the lowest energy level first (1s, 2s, 2p, etc.). Ignoring this order leads to an incorrect representation of the atom’s structure.

2. Ignoring the Pauli Exclusion Principle: Each orbital can hold a maximum of two particles with opposite spins. Failing to account for this principle by placing two arrows with the same spin direction in one orbital is a common mistake. Always ensure that each orbital contains no more than two particles, each with opposite spins.

3. Placing More Than Two Electrons in the Same Orbital: For subshells such as p, d, and f, the maximum number of particles per orbital is two. Placing more than two particles in a single orbital violates fundamental principles of atomic structure.

4. Misrepresenting Subshell Capacities: Make sure that each subshell is drawn with the correct number of orbitals. The s subshell contains 1 orbital, p contains 3, d contains 5, and f contains 7. Incorrectly assigning the wrong number of orbitals to these subshells leads to an inaccurate model.

5. Ignoring Hund’s Rule: In degenerate orbitals (orbitals within the same subshell, like the 2p or 3d orbitals), place one particle in each orbital before pairing them. This helps minimize repulsion between particles and accurately reflects the lowest energy arrangement.

6. Incorrect Number of Particles: Ensure that the total number of particles corresponds to the atomic number of the element being represented. Double-check that all orbitals are filled correctly according to the number of particles in the atom.

7. Forgetting to Account for Transition Elements: In transition metals, d orbitals may not be completely filled before f orbitals. Pay special attention to these elements when constructing the structure to avoid common mistakes in electron placement.

For more detailed guidance, visit trusted resources such as the LibreTexts Chemistry Resource.

Interpreting the Periodic Table for Electron Configuration

1. Identify the Period: The period (row) number on the periodic table corresponds to the highest energy level being filled in an atom. For example, elements in period 2 fill the second energy level (n=2), while elements in period 3 fill the third energy level (n=3).

2. Identify the Block: The periodic table is divided into blocks (s, p, d, f) based on the type of subshell being filled. Elements in the s-block (groups 1 and 2) fill s orbitals, while p-block elements (groups 13-18) fill p orbitals. Transition metals in the d-block fill d orbitals, and f-block elements fill f orbitals.

3. Determine the Group Number: The group number can provide information about the number of particles in the outermost shell. For example, group 1 elements have one particle in their outermost shell, while group 17 elements have seven. This can help predict the valence structure of the element.

4. Follow the Aufbau Principle: Start filling the lowest energy orbitals first. The order in which orbitals are filled is determined by their energy levels, with s orbitals being filled first, followed by p, d, and f orbitals. Refer to the periodic table’s structure for guidance on orbital filling sequences.

5. Use Hund’s Rule: When filling degenerate orbitals (such as the 2p or 3d orbitals), place one particle in each orbital before pairing them. This minimizes electron-electron repulsion and ensures the lowest energy configuration.

6. Consider the Noble Gas Core Notation: For elements beyond period 2, use the noble gas core notation to simplify the representation of the atomic structure. The nearest noble gas configuration is placed in square brackets, and additional orbitals are added based on the element’s position on the table.

7. Recognize Exceptions in Transition Metals: Transition elements may have irregular filling patterns, especially with the d and f orbitals. Elements like copper (Cu) and chromium (Cr) follow a unique filling sequence that results in a more stable electron arrangement.

For detailed information on periodic trends and electron distribution, check the LibreTexts Chemistry Resource.

Practical Tips for Mastering Electron Configurations and Orbital Diagrams

1. Memorize the Order of Subshells: Practice the sequence of subshell filling: 1s, 2s, 2p, 3s, 3p, 4s, 3d, 4p, 5s, 4d, 5p, etc. This will help you quickly determine the correct filling order for any element.

2. Use the Periodic Table as a Guide: The periodic table is your map for orbital filling. Group numbers correspond to the number of valence particles, while periods indicate the energy level being filled.

3. Familiarize Yourself with the Aufbau Principle: Understand that orbitals fill in order of increasing energy, not strictly by their distance from the nucleus. The 4s orbital fills before the 3d orbital, for example, despite being higher in energy.

4. Learn the Exceptions: Some elements in the d-block and f-block do not follow the expected filling order. Practice with specific examples like copper (Cu) and chromium (Cr) to understand these exceptions.

5. Use Noble Gas Notation: Simplify complex configurations by using noble gas shorthand. For example, instead of writing the entire configuration for argon (Ar), you can start with [Ne] 3s² 3p⁶ to focus on the valence shell.

6. Master Hund’s Rule: When filling orbitals of equal energy (like the 2p orbitals), remember to place one particle in each orbital before pairing them. This minimizes repulsion and results in the most stable configuration.

7. Draw with Precision: When drawing diagrams, ensure each orbital is represented with correct spin directions and electron counts. Pay attention to the shape and size of each orbital, especially in multi-electron atoms.

8. Practice with Real Elements: Start with the simplest elements, like hydrogen and helium, and work your way up to more complex ones. Use a periodic table to look up each element’s configuration and test your understanding.
