Step-by-Step Guide to Dilations on the Coordinate Plane
To perform transformations using a scaling factor on a graph, it is important to understand how each point moves relative to a fixed center. The key to mastering these transformations is to calculate the new positions of the points using the correct scale and center. This process allows you to adjust figures without changing their shape, only their size.
Start by determining the center of transformation. The center can either be the origin or any arbitrary point on the grid. Once this is identified, apply the scale factor to each coordinate. A scale factor greater than one will increase the size, while a scale factor less than one will reduce it. The direction of dilation depends on whether the factor is positive or negative, each yielding distinct outcomes on the graph.
In this guide, we will walk through the steps of performing dilations, focusing on applying the right scale factor and interpreting the results correctly. By following these methods, you can confidently solve problems involving scaling on the graph and ensure accurate solutions.

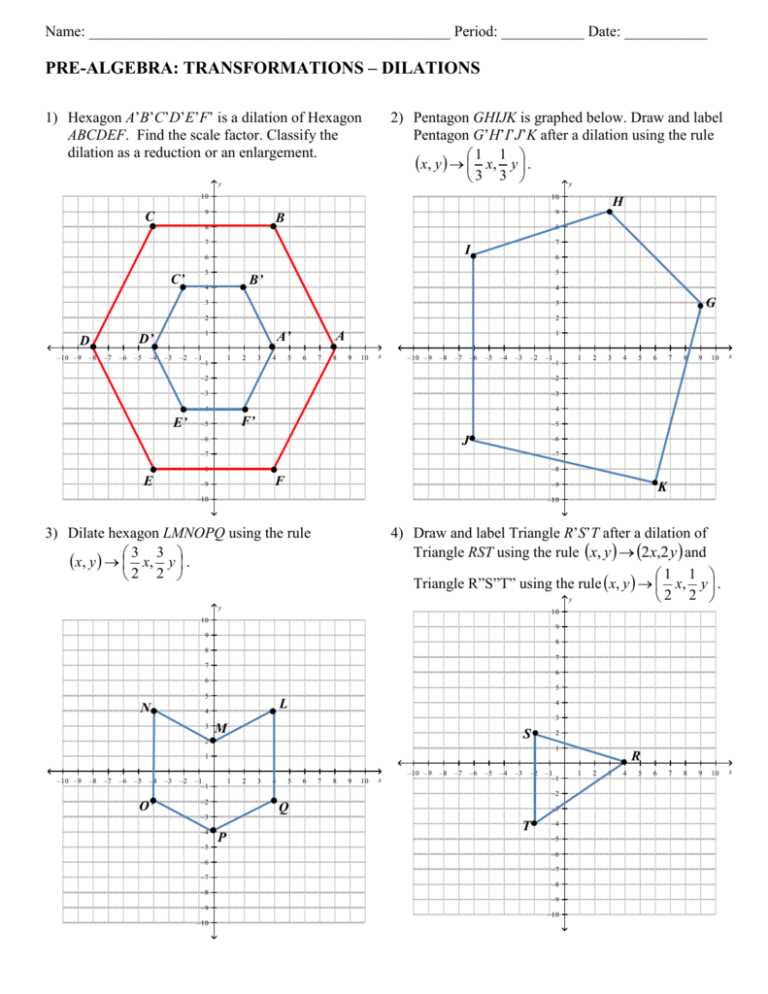

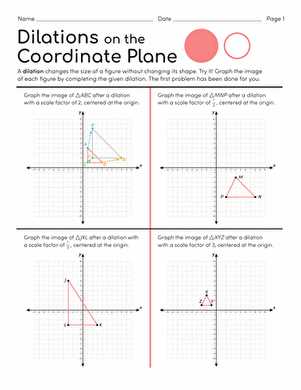

Dilations on the Coordinate Plane Answer Key
To complete problems involving transformations on a grid, follow these steps carefully. Begin by identifying the fixed center point for the transformation, which could be the origin or another point. Once the center is determined, apply the scale factor to each coordinate. The scale factor determines how much larger or smaller the figure becomes based on the center. For instance, a scale factor of 2 will double the distance from the center for each point, while a factor of 0.5 will reduce the distance by half.
For each point in the figure, multiply the x and y coordinates by the scale factor. This operation will yield the new position of the point. If the scale factor is negative, the points will reflect over the center as well as scale. Make sure to apply this operation to every point in the figure to determine the full transformation.
After applying the transformation to all points, plot the new points on the grid and connect them to form the transformed figure. Verify that the distances between the points are proportional to the original figure, in line with the scale factor used. These steps will ensure that the transformation is done correctly and that the figure remains consistent with the intended scaling instructions.
Understanding the Concept of Dilations on the Coordinate Plane
To grasp the concept of scaling a figure on a graph, identify a fixed center point around which the transformation occurs. The position of each point in the figure is altered by multiplying its coordinates by a scale factor, which determines how much the figure grows or shrinks. A scale factor greater than 1 expands the figure, while a scale factor between 0 and 1 contracts it.
For example, if you are given a point at (3, 4) and apply a scale factor of 2, the new position of the point will be (6, 8), which is double the distance from the origin. Conversely, applying a scale factor of 0.5 would move the point to (1.5, 2), halving the distance from the center.
It is important to remember that scaling affects the entire figure uniformly. Each point is transformed by the same scale factor relative to the center, ensuring that the shape’s proportions are preserved, although its size changes. If the scale factor is negative, the figure will be reflected in addition to being scaled.
Identifying the Center of Dilation
To find the center of expansion, begin by choosing any two corresponding points on the original figure and its transformed image. Draw lines connecting each pair of corresponding points. The point where these lines intersect is the center.
For example, if you have a point at (2, 3) and its image after scaling is at (4, 6), draw a line between these two points. Repeat this process with another pair of points. The intersection of these lines indicates the center of transformation.

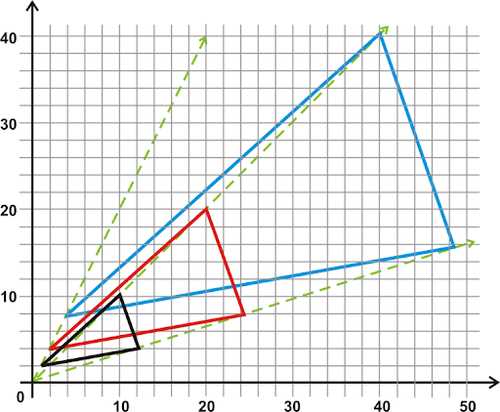

If the center is located at the origin, all points will move outward or inward along straight lines from the origin, maintaining a consistent scale factor. If the center is elsewhere, the transformation still works similarly, but each point moves along a path toward or away from that specific point.
How to Apply the Scale Factor in Dilations
To apply a scale factor during transformation, multiply each coordinate of the original point by the scale factor. If the scale factor is greater than 1, the shape enlarges. If the scale factor is between 0 and 1, the shape shrinks.
For example, with a point (x, y) and a scale factor of 2, the new coordinates will be (2x, 2y). If the scale factor is 0.5, the new coordinates become (0.5x, 0.5y). Always remember that the transformation occurs relative to the center of expansion.
In cases where the center of expansion is not at the origin, subtract the coordinates of the center from each point, apply the scale factor, then add the center’s coordinates back to the result.
| Original Coordinates | Scale Factor = 2 | Scale Factor = 0.5 |
|---|---|---|
| (3, 4) | (6, 8) | (1.5, 2) |
| (-2, 5) | (-4, 10) | (-1, 2.5) |
Understanding Positive and Negative Scale Factors
A positive scale factor will enlarge a figure, maintaining the direction of the shape. For example, if the scale factor is 3, the distance from the center of transformation to any point on the figure will triple.
A negative scale factor, on the other hand, reverses the direction of the figure. If the scale factor is -2, the figure will not only enlarge, but also reflect across the center of transformation. The coordinates of each point will be multiplied by -2, effectively flipping the shape.
For practical application, consider a point (x, y) with a scale factor of 2. The new coordinates will be (2x, 2y). With a scale factor of -2, the coordinates will transform to (-2x, -2y), flipping the figure across the center.
Steps to Calculate Dilated Coordinates
1. Identify the center of transformation. This is the point from which all distances will be measured and scaled. Commonly, the center is (0, 0), but it can be any point on the graph.
2. Determine the scale factor. The scale factor (k) determines how much the figure will be enlarged or reduced. A positive value will enlarge the figure, while a negative value will also reflect it across the center of transformation.
3. Multiply the coordinates of each point by the scale factor. For each point (x, y), apply the formula: new_x = k * x, new_y = k * y. This will give you the new position of each point after the transformation.
4. Plot the new points. After applying the scale factor to each point, plot the new points on the grid to see the transformed figure. Verify that the shape has been correctly enlarged, reduced, or reflected according to the scale factor.
Examples of Dilations with Different Centers
1. Center at (0, 0)
For a center at the origin, apply the scale factor directly to each coordinate. For example, with a scale factor of 2, the point (3, 4) will become (6, 8). If the scale factor is 0.5, the point (3, 4) will become (1.5, 2).
2. Center at (2, 3)
If the center is at (2, 3), subtract the center’s coordinates from the point, apply the scale factor, and then add the center’s coordinates back. For a scale factor of 2, transform the point (5, 6) as follows:
– Subtract the center: (5 – 2, 6 – 3) = (3, 3)
– Multiply by the scale factor: (3 * 2, 3 * 2) = (6, 6)
– Add the center back: (6 + 2, 6 + 3) = (8, 9)
3. Center at (1, -1)
With a center at (1, -1) and a scale factor of -1, reflect and resize the point. For the point (4, 2), transform as follows:
– Subtract the center: (4 – 1, 2 – (-1)) = (3, 3)
– Multiply by the scale factor: (3 * -1, 3 * -1) = (-3, -3)
– Add the center back: (-3 + 1, -3 – 1) = (-2, -4)
4. Center at (-2, -2)
With a center at (-2, -2) and a scale factor of 3, the point (1, 1) transforms as follows:
– Subtract the center: (1 – (-2), 1 – (-2)) = (3, 3)
– Multiply by the scale factor: (3 * 3, 3 * 3) = (9, 9)
– Add the center back: (9 + (-2), 9 + (-2)) = (7, 7)
Common Mistakes to Avoid During Dilation Calculations
1. Failing to Identify the Correct Center: Always ensure that the correct center is identified. If you apply the wrong point as the center of scaling, your results will be inaccurate. For example, if the center is at (2, 3) and you mistakenly use (0, 0), the transformation will not reflect the correct position.
2. Not Adjusting Coordinates Before Scaling: A common error is to skip subtracting the center’s coordinates before applying the scale factor. Always subtract the center’s coordinates from the original points first, apply the scale factor, and then add the center’s coordinates back. Forgetting this step leads to incorrect transformations.
3. Misinterpreting the Scale Factor: Ensure you understand the effect of the scale factor. A positive factor greater than 1 stretches the figure, while a factor less than 1 compresses it. A negative scale factor will also flip the shape. Confusing these effects can result in miscalculating the new position of points.
4. Forgetting to Reflect with Negative Scale Factors: When using a negative scale factor, remember that not only does the shape change in size, but it also reflects across the center. Failing to account for this reflection will result in incorrectly placed points.
5. Not Double-Checking Your Math: Small arithmetic errors, especially when adding and subtracting coordinates, can cause significant mistakes. Always verify your calculations, especially after applying the scale factor, to avoid inaccuracies.
6. Confusing Scaling with Translation: Scaling involves resizing a figure by a factor, while translation simply shifts it. Be sure to distinguish between these transformations to prevent incorrect application of formulas.
For more details on proper scaling techniques and common mistakes, you can refer to trusted educational resources such as Khan Academy.
Using Dilations in Geometric Transformations and Real-Life Applications
1. Resizing Architectural Plans: Architects often use transformations to scale up or down designs while keeping proportions accurate. By applying a scaling factor, architects can enlarge or shrink building layouts for construction, ensuring that designs fit specific site dimensions.
2. Mapping and Cartography: When creating maps, cartographers use scaling to adjust the size of geographic areas for representation. Whether it’s scaling a country’s outline or adjusting distances on a map, applying the correct factor allows for realistic, proportional scaling of large areas onto smaller map sizes.
3. Digital Image Editing: In photo manipulation software, resizing images involves transformations. By applying a scaling factor to specific pixels, the image can be enlarged or reduced without altering its shape. This is crucial for maintaining image quality in editing processes.
4. Computer Graphics and Animation: In video game design or animation, objects must be resized for various scenes. Using scaling factors allows animators to adjust character sizes or backgrounds without distorting proportions. Scaling also plays a role in object movement across the screen, especially in 3D rendering.
5. Robotics and Engineering: Engineers use scaling principles when designing mechanical parts or systems. By adjusting the size of components through scaling transformations, they can maintain functionality while ensuring that machines and devices operate within specific size constraints.
6. Photography and Printing: Scaling techniques are crucial in determining print sizes for photos. Photographers must apply the appropriate scaling factor to fit their work into different print formats without distorting image quality, ensuring the final product meets client specifications.
7. Animation and Modeling in Movies: Special effects artists use scaling transformations to resize objects or characters to match the perspective and scale of the scene. This is essential in visual effects to ensure that digitally altered elements integrate smoothly into real-world environments.
8. Medicine and Biomechanics: Scaling transformations help in resizing body models or analyzing mechanical parts within medical devices. For example, adjusting the size of models for prosthetic devices or anatomical models requires precise scaling to fit human dimensions accurately.
