9.2 Mechanical Advantage Solutions and Explanations

9.2 mechanical advantage answer key

Begin by thoroughly reviewing the basic concepts behind the calculations. Understanding how force and distance relate in machines is key to correctly applying the formulas. When calculating the effectiveness of simple tools, pay attention to the inputs and outputs to ensure your numbers match the expected ratios.

Focus on the specific formulas provided in your exercises. They are the tools that will guide you in assessing how mechanical systems work in real-world scenarios. If you are unsure about a step, break it down into smaller parts and work through each segment to check for accuracy.

For a more detailed understanding, take time to explore each calculation example. Cross-reference your results with the provided solutions. By doing this, you can quickly identify any inconsistencies in your approach and adjust your methods to refine your skills.

Detailed Guide to Understanding Force Multiplication in Section 9.2

Focus on the relationship between input and output forces when using simple machines. Calculate the ratio of output force to input force to determine how much the system amplifies effort. Be sure to use the correct measurements for both the force applied and the force generated by the machine.

Work through the examples carefully to ensure you understand the specific parameters. Pay attention to variables like the length of the lever arm or the angle of application, as these will impact the results. Always double-check your units to confirm consistency across the equation.

To improve your understanding, review each problem step by step. Break down complex problems into smaller, more manageable parts. For example, when calculating the force needed to lift a load, identify how the load is distributed and how different tools affect the input force. This will make the calculations more intuitive.

Lastly, compare your results with the correct solutions to spot any errors. Look for patterns in how different machines or systems influence force multiplication, and adjust your methods based on these observations to strengthen your grasp of the material.

How to Calculate Force Amplification for Simple Machines

To determine how much a simple machine amplifies input force, divide the output force by the input force. The general formula is:

Force Amplification (Mechanical Advantage) = Output Force / Input Force

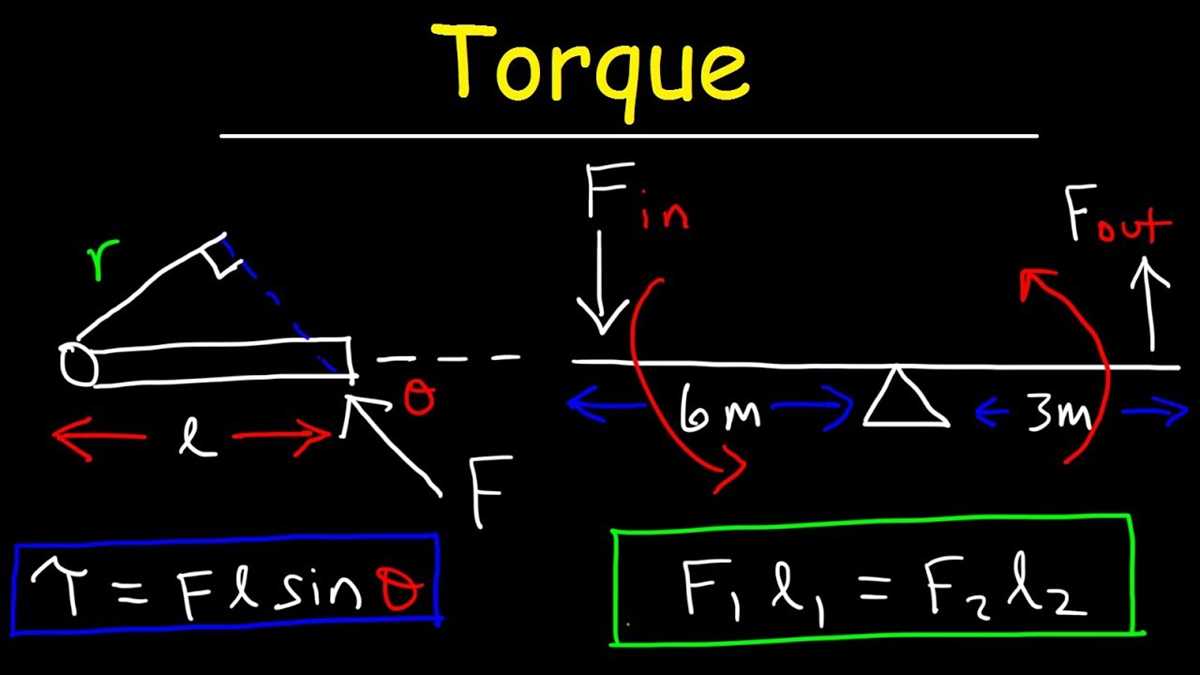

For levers, pulleys, and inclined planes, this ratio varies based on the specific design and the way force is applied. For example, in a lever, the mechanical advantage is determined by the ratio of the lengths of the input arm to the output arm:

Mechanical Advantage (Lever) = Length of Input Arm / Length of Output Arm

In the case of an inclined plane, the mechanical advantage depends on the ratio of the length of the slope to the height of the incline:

Mechanical Advantage (Inclined Plane) = Length of Slope / Height of Incline

For pulleys, the mechanical advantage is equal to the number of rope segments supporting the load:

Mechanical Advantage (Pulley) = Number of Supporting Rope Segments

Once the calculations are made, compare them with the correct solutions to ensure accuracy. You can verify results using resources like Khan Academy for further examples and explanations.

Understanding the Relationship Between Force and Distance in Simple Machines

The relationship between force and distance in simple machines is fundamental to how they operate. In many cases, when the distance over which a force is applied increases, the force required to move an object decreases. This inverse relationship allows for a more efficient transfer of energy.

The mechanical advantage provided by a machine can be described by the equation:

Work = Force x Distance

Since work remains constant in an ideal system (neglecting friction and other losses), when a simple machine amplifies force, it must reduce the distance over which the force is applied. This can be illustrated with an example: if a lever reduces the required force, the distance over which the load is moved will increase proportionally.

For example, when using a longer input arm on a lever, less force is needed to lift a load. However, the distance the load moves is greater than the distance the effort force moves. This relationship between force and distance can be summarized as:

Force x Distance (Input) = Force x Distance (Output)

This principle is consistent across most simple machines, such as pulleys, levers, and inclined planes, where a trade-off between force and distance occurs. Understanding this relationship helps in selecting the right machine for a specific task and ensures that you can predict how much force will be needed for a given task and how far the load will move.

Common Mistakes in Calculating Mechanical Advantage and How to Avoid Them

When calculating the force multiplication of a simple machine, several mistakes can occur. These errors may lead to inaccurate results and hinder a clear understanding of the system’s behavior. Below are some of the most common mistakes and tips to avoid them:

Incorrect Formula Use: One of the most frequent errors is using the wrong equation for the calculation. Ensure you’re using the correct formula for the type of machine you’re analyzing. For levers, use the ratio of input distance to output distance, and for pulleys, consider the number of supporting ropes.
Ignoring Friction: Many calculations assume a frictionless system, which may not always be the case. Friction reduces the efficiency of the machine and affects the actual mechanical advantage. Always account for friction when applicable.
Confusing Input and Output Force: It’s common to mix up the input force (effort) and output force (load). Make sure you’re comparing the right forces. The effort force is the one applied to the machine, while the load is the force exerted by the machine.
Not Accounting for Distance: Failing to properly measure or consider the distances involved in the process can lead to incorrect calculations. Ensure that both input and output distances are measured accurately and taken into account in your calculations.
Overlooking the Impact of Mechanical Efficiency: Ideal calculations assume 100% efficiency, but in real-world applications, losses are inevitable. Consider the practical impact of these losses in the final mechanical advantage.

By paying attention to these key points and double-checking the measurements, the calculations of force ratios can be made more accurate, helping to understand the true performance of the machine.

Applying the Formula for Mechanical Advantage to Real-Life Scenarios

To calculate the force multiplication in practical situations, use the following formula: Mechanical Advantage (MA) = Output Force / Input Force. This formula helps determine how much a machine can multiply an applied force. Below are several real-world applications of this formula:

Using a Lever to Lift a Heavy Object: If you use a lever to lift a rock, the output force is the force exerted on the rock, and the input force is the force you apply to the lever. For example, if you apply 50 N of force to lift a 200 N rock, the mechanical advantage is 200 N / 50 N = 4. This means the lever multiplies your force by 4.
Using a Pulley to Raise a Load: For a pulley system, the mechanical advantage depends on the number of ropes supporting the load. If a single pulley system requires 100 N of force to lift a 200 N load, the mechanical advantage is 200 N / 100 N = 2, meaning you only need half the force to lift the load.
Using a Ramp (Inclined Plane) to Lift an Object: The mechanical advantage of an inclined plane is calculated by dividing the length of the ramp by its height. For instance, a 10-meter ramp with a height of 2 meters gives a mechanical advantage of 10 m / 2 m = 5. This means that the force needed to lift the object is reduced by a factor of 5 compared to lifting it vertically.

By applying these calculations to everyday machines like pulleys, levers, and ramps, you can evaluate how effectively they reduce the effort required to perform work. These calculations can guide the choice of tools and help understand their efficiency in different tasks.

How to Use the Answer Key to Verify Your Calculations

To confirm the accuracy of your calculations, follow these steps:

Compare Results: After solving a problem, check your calculated result against the provided solution. Look for a match between your final value and the one listed in the solution guide.
Check Units: Ensure that your units match those used in the reference solutions. If there is a discrepancy in the units, recheck your work and adjust where necessary.
Identify the Formula Used: Cross-reference the formula applied in your calculations with the one presented in the answer guide. Ensure you followed the correct method and input all necessary values.
Review Step-by-Step Solutions: If your result differs, follow the step-by-step process in the provided solution carefully. It might reveal where you made a mistake in your approach.
Check for Common Mistakes: Verify common errors such as misplacing decimal points, incorrect multiplication, or wrong unit conversions. If these were made, correct them and recalculate.

By using the solution guide in this way, you can quickly pinpoint any errors and improve your calculation skills for future problems.

Interpreting the Results from the Mechanical Advantage Exercises

To correctly interpret the results from the exercises, consider the following steps:

Analyze the Numerical Output: Compare the value of the ratio obtained in your calculations to the expected outcome. A ratio greater than 1 indicates a force multiplier, while a ratio less than 1 suggests that more input force is required.
Understand the Significance of the Results: If the calculated value of the ratio is significantly high, this suggests that the machine allows for a significant reduction in effort force. If the ratio is low, it indicates that the machine does not offer much advantage in terms of force reduction.
Check for Consistency: Cross-check the results from different exercises. Consistent results across similar problems should reinforce your understanding, while any discrepancies may point to calculation errors or misunderstandings in approach.
Interpret the Role of Distance: When comparing force and distance, remember that a higher output distance typically correlates with a lower force input. Ensure your interpretation of the relationship aligns with this principle.
Contextualize the Output: In real-world applications, a higher ratio might suggest a more efficient machine for certain tasks, but may also require additional input distance. Balance the results to understand practical implications.

By following these steps, you will gain a clearer understanding of the exercise outcomes and how the theoretical principles apply to practical scenarios.

Key Formulas and Units Used in Mechanical Advantage Problems

The formula for calculating the force ratio in machines is:

Force Ratio (Mechanical Advantage) = Output Force / Input Force
Distance Ratio = Distance over which the input force acts / Distance over which the output force acts

When solving problems involving simple machines, it’s important to use consistent units across all measurements. Below are the common units used in these types of problems:

Force: Newtons (N) – This is the standard unit of force in the SI system.
Distance: Meters (m) – Used to measure the distances over which forces are applied.
Work: Joules (J) – Work is the product of force and distance, and is measured in joules. 1 joule = 1 N·m.

Ensure that input and output forces, as well as distances, are measured in the correct units to maintain the accuracy of your calculations. In many problems, you may also be asked to calculate the efficiency of a system using the formula:

Efficiency (%) = (Useful Output Work / Total Input Work) × 100

By applying these formulas and units, you can effectively solve problems and understand the principles behind simple machines.

Practical Examples to Reinforce the Concept of Mechanical Advantage

To solidify your understanding of force multiplication, here are several real-world applications of simple machines where the concept of force and distance manipulation is critical:

Lever: When using a crowbar to lift a heavy object, the distance you apply force to the bar is much longer than the distance the object moves. This allows you to lift heavier objects with less effort.
Pulley: A fixed pulley system allows you to lift heavy loads with less force by increasing the distance over which the rope is pulled. This is commonly seen in construction cranes or theater curtains.
Inclined Plane: A ramp reduces the effort needed to lift a load by increasing the distance over which the load is moved. It’s commonly used in loading docks or wheelchairs.
Wheel and Axle: Turning the wheel of a cart provides more torque to move the cart than applying force directly to the axle. This principle is used in everyday items such as doorknobs and steering wheels.
Wedge: A wedge like a knife or axe splits materials by concentrating force over a smaller area, making it easier to cut through tough materials.
Screw: A screw uses rotational force to convert a small distance of motion into a large amount of force, as seen in wood screws and clamps.

In each of these examples, the amount of force required is reduced by increasing the distance over which the force is applied, demonstrating the concept of mechanical advantage in action.
