Solutions and Concepts for Simple Machines Exercises in Section 14.4
Start by identifying the mechanical advantage in each task. Recognizing the type of device you’re working with is the first step. Whether dealing with a lever or pulley, the force exerted or resistance encountered can be simplified using basic principles. To solve problems effectively, always focus on understanding the role of each component and how they interact to reduce or increase force.
Next, carefully apply the formulas for each device. For levers, remember that the mechanical advantage is the ratio of the distances from the fulcrum to the point of effort and load. For pulleys, consider whether you’re dealing with a fixed or movable system, as this will affect the number of ropes involved and the resulting advantage.
Lastly, stay aware of common errors in calculating distances or forces. Misinterpreting the direction of effort, or incorrectly measuring the lengths in your setup, can lead to mistakes in your final solution. By practicing with different examples and checking your work step-by-step, you can sharpen your ability to use these tools in practical scenarios.
Detailed Guide to Solutions for Simple Mechanical Devices Exercises
For lever-related exercises, identify the effort force and load force, and then use the formula: mechanical advantage = effort distance / load distance. This will provide insight into the effectiveness of the lever in reducing effort.
When working with pulley systems, determine the number of supporting ropes. A fixed pulley only changes the direction of force, while a movable pulley reduces the force needed. For complex systems, calculate the combined mechanical advantage by considering the multiple pulleys involved.
In problems involving inclined planes, calculate the mechanical advantage using the formula: mechanical advantage = length of incline / height. This demonstrates how using an inclined plane reduces the effort required to lift an object, though the distance traveled is greater.
Friction always affects mechanical advantage. Account for the coefficient of friction in problems involving surfaces that resist movement. The more friction, the greater the effort needed to move an object, decreasing the advantage gained from the device.
For wheel and axle setups, calculate the mechanical advantage by dividing the radius of the effort force by the radius of the load force. This ratio helps determine how much easier it is to move the load using the wheel and axle system.
In every problem, double-check all measurements for accuracy. Any miscalculation, whether in force or distance, can lead to incorrect results. Precision is critical when solving exercises involving mechanical systems.
Practice with multiple problems to gain familiarity with each device’s function and to improve your ability to quickly determine the mechanical advantage and solve related questions effectively.

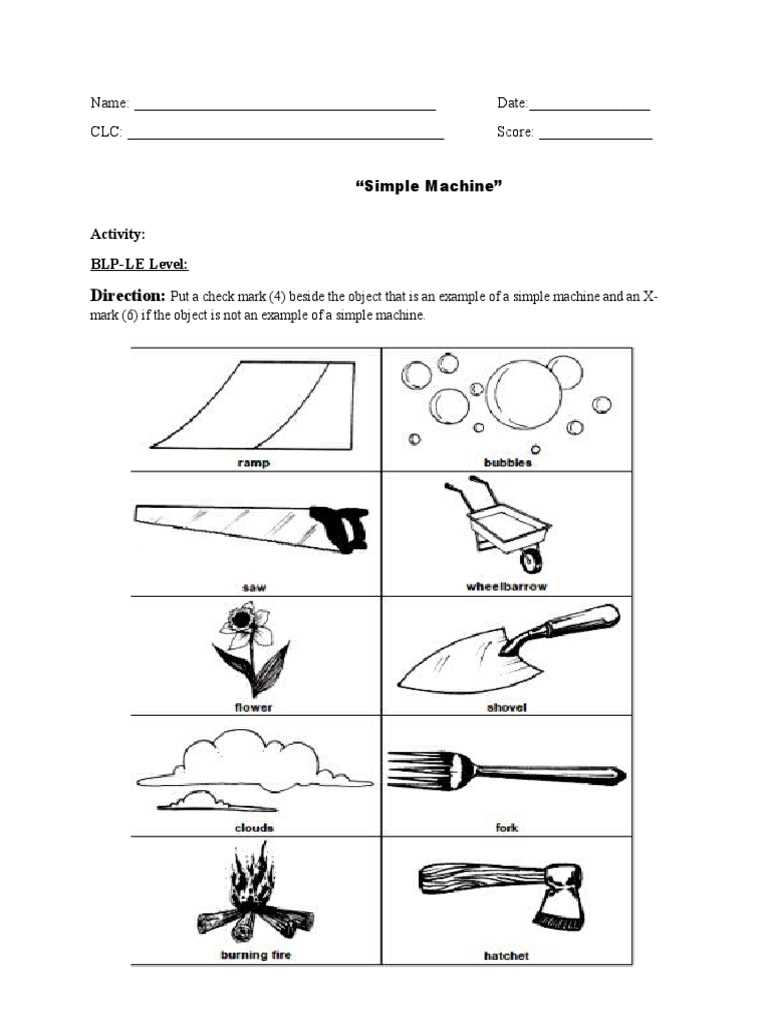

How to Identify Different Types of Simple Devices
To distinguish between different devices, first look at their function and how they reduce the effort needed to move an object. Each type operates based on a distinct principle.
Levers are identified by a rigid bar that rotates around a fixed point called a fulcrum. The effort and load forces are applied at different distances from the fulcrum. If the effort is applied further from the fulcrum than the load, it magnifies the force.
Pulleys consist of a wheel with a rope running along its groove. There are fixed pulleys, which change the direction of force, and movable pulleys, which reduce the force needed to lift an object. A combination of both is called a block and tackle system.
An inclined plane is a slanted surface used to lift objects. It reduces the force needed to raise an object by increasing the distance over which the force is applied. Measure the angle of the slope and the height to identify the mechanical advantage.
Wheels and axles involve a circular wheel attached to a central rod, or axle. The effort force is applied to the wheel, which magnifies the force at the axle. The size ratio between the wheel and axle determines the mechanical advantage.
For screws, identify a spiral inclined plane wrapped around a central core. The distance between the threads of the screw and the force required to turn it determines how much force is needed to move an object.
Finally, wedges are devices with a thick end that tapers to a sharp edge. These are used to split or cut materials and operate by converting a force applied to the wide end into a splitting force at the sharp edge.
To explore more about these devices, visit trusted educational sites like Khan Academy for further detailed explanations and examples.

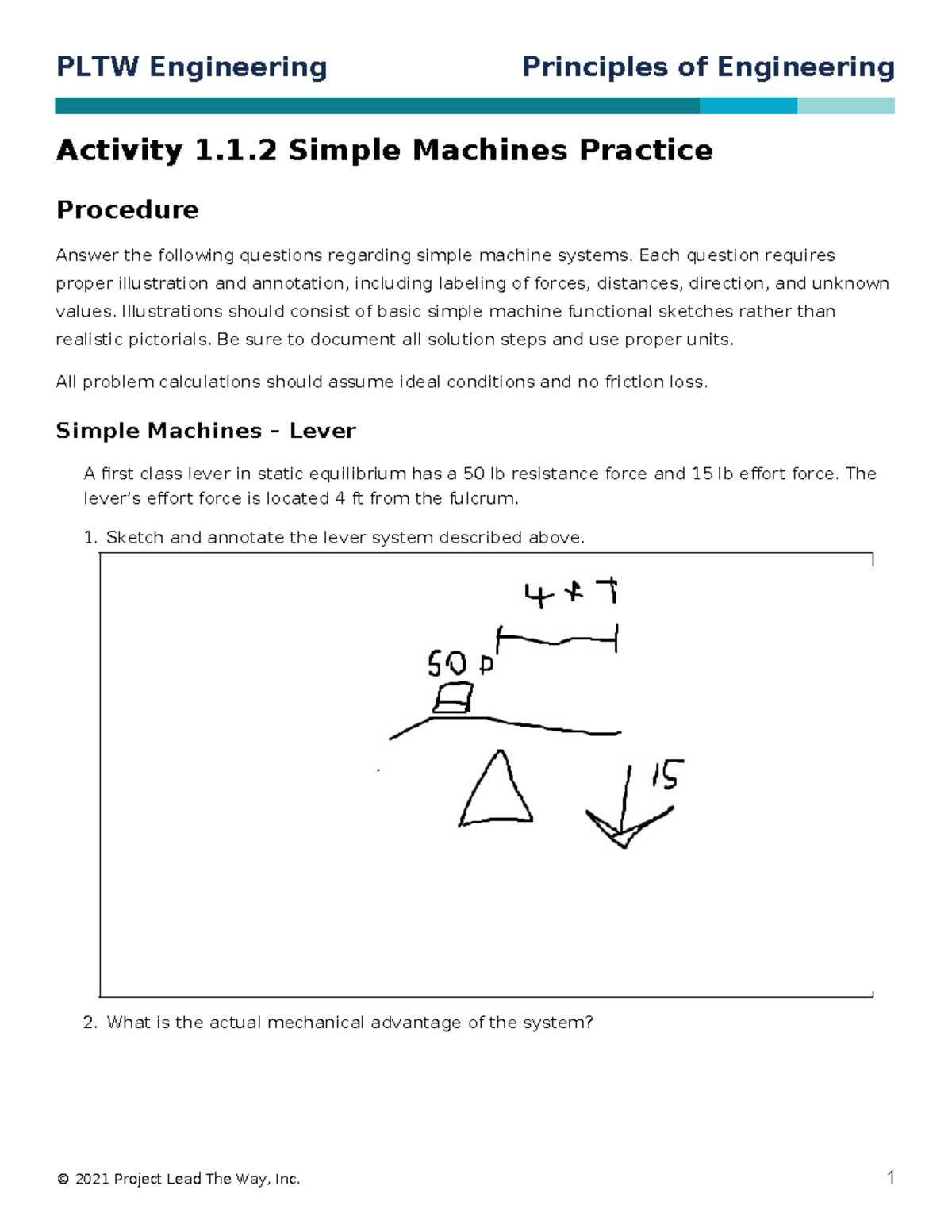

Step-by-Step Solutions for Levers and Their Applications
Levers operate on the principle of force and distance. To solve problems involving levers, identify the key components: the effort force, the load force, and the fulcrum. Use the following steps to solve lever-based problems:
1. Identify the Type of Lever
There are three types of levers:
- First-class lever: Fulcrum is between the effort and load (e.g., seesaw).
- Second-class lever: Load is between the fulcrum and effort (e.g., wheelbarrow).
- Third-class lever: Effort is between the fulcrum and load (e.g., tongs).
2. Determine the Fulcrum Location
The location of the fulcrum is crucial for calculating the mechanical advantage. In a first-class lever, the fulcrum is between the load and effort. For second-class levers, the fulcrum is at one end, and the load is closer to it. In third-class levers, the fulcrum is at one end, and the effort is applied between it and the load.
3. Measure the Distances
Measure the distances from the fulcrum to the effort force (input arm) and from the fulcrum to the load force (output arm). These measurements are crucial for calculating the mechanical advantage.
4. Calculate the Mechanical Advantage (MA)
The mechanical advantage (MA) of a lever is calculated using the formula:
MA = Effort arm / Load arm
5. Apply the Formula
For example, if the effort arm is 4 meters and the load arm is 2 meters, the mechanical advantage would be 2 (4/2 = 2). This means that the lever makes the force applied twice as effective.
6. Solve for Unknowns
If a problem asks for the force required to lift a load using a lever, rearrange the formula to solve for the effort force:
Effort force = Load force / MA
7. Check for Real-World Applications
Levers are used in a wide range of tools and machines. For example, a crowbar uses a first-class lever to pry open objects, while a bottle opener uses a second-class lever to lift the cap. By understanding the mechanics of levers, you can improve your ability to solve practical problems.
For additional examples and detailed explanations, refer to trusted sources such as Khan Academy.
Understanding Pulley Systems and Their Mechanical Advantage
To maximize the efficiency of a pulley system, it’s important to understand how different setups affect the force required to lift an object. Pulleys are classified into fixed, movable, and compound types, each offering varying degrees of mechanical advantage.
1. Identify the Type of Pulley System
A fixed pulley does not move and changes the direction of the applied force. A movable pulley moves along with the load, reducing the force needed to lift the object. Compound systems combine fixed and movable pulleys to provide greater mechanical advantage.
2. Understand Mechanical Advantage (MA)
The mechanical advantage of a pulley system is calculated by counting the number of supporting ropes. The more ropes that support the load, the less force is needed to lift it. The formula for MA in a pulley system is:
MA = Number of supporting ropes
3. Analyze Force Reduction
In a movable pulley system, the force required to lift the load is reduced by half. For example, if the load weighs 100 N, only 50 N of force is needed to lift it using a movable pulley system with two supporting ropes.
4. Apply the Formula to Solve for Force
If a problem asks for the effort force to lift a load, you can rearrange the formula to solve for effort:
Effort Force = Load Force / MA
For instance, if a load of 200 N is being lifted with a system that provides a mechanical advantage of 4, the effort force required would be 50 N (200 N / 4 = 50 N).
5. Examine Real-World Applications
Pulley systems are commonly used in cranes, elevators, and flagpoles. They reduce the amount of force needed to lift heavy objects by distributing the load across multiple ropes, making tasks more manageable.
6. Consider the Efficiency of the System
Although pulley systems can reduce the force required to lift objects, friction within the pulleys can decrease the system’s overall efficiency. It’s important to account for the frictional losses when calculating the total effort force.
For more detailed explanations and examples, you can refer to resources like Khan Academy’s Physics Section.
Inclined Planes: Solving Problems and Calculating Effort
To calculate the effort required to move an object up an inclined plane, use the formula:
Effort = Weight × sin(θ),
where θ is the angle of the incline and Weight is the force of gravity acting on the object. The steeper the incline (higher θ), the more effort is needed. The ratio of the effort force to the weight of the object gives the mechanical advantage (MA), which can be calculated as:
MA = 1 / sin(θ).
For example, if an object weighs 100 N and the incline angle is 30°, the effort required would be:
Effort = 100 N × sin(30°) = 100 N × 0.5 = 50 N.
The mechanical advantage would be:
MA = 1 / sin(30°) = 1 / 0.5 = 2.
This means the inclined plane reduces the effort required by a factor of 2.
In real-world applications, friction is also a factor. The frictional force (F_friction) can be calculated using:
F_friction = μ × N,
where μ is the coefficient of friction and N is the normal force. For an inclined plane, N = Weight × cos(θ). The total effort required to move the object up the incline, including friction, is:
Total Effort = Effort + F_friction.
If the coefficient of friction (μ) is 0.2, the normal force is:
N = 100 N × cos(30°) ≈ 100 N × 0.866 = 86.6 N.
F_friction = 0.2 × 86.6 N = 17.32 N.
Thus, the total effort becomes:
Total Effort = 50 N + 17.32 N = 67.32 N.
These calculations can be applied to any object on an inclined plane, allowing for the assessment of effort needed under different conditions and angles.
Wheel and Axle Mechanics: Analyzing Force and Movement
The mechanical advantage of a wheel and axle system can be determined using the ratio of the radii of the wheel and the axle. The formula for mechanical advantage (MA) is:
MA = Radius of Wheel / Radius of Axle.
For example, if the wheel has a radius of 40 cm and the axle has a radius of 10 cm, the mechanical advantage would be:
MA = 40 cm / 10 cm = 4.
This means the force applied to the wheel is magnified by a factor of 4.
To calculate the effort required to move an object, use the following formula:
Effort = Load / MA.
If a load of 200 N is being lifted with a system that has a mechanical advantage of 4, the effort required would be:
Effort = 200 N / 4 = 50 N.
In this case, a 50 N force would be enough to lift a 200 N load due to the advantage gained from the wheel and axle mechanism.
Friction plays a key role in the system’s performance. The frictional force can be calculated using:
F_friction = μ × N,
where μ is the coefficient of friction and N is the normal force. For the wheel and axle, N is the force exerted by the axle’s surface on the wheel. A higher coefficient of friction will increase the required effort, making the system less efficient.
To reduce friction, lubricants or smooth surfaces are typically used in mechanical systems. This can help optimize the force transmission, ensuring the system operates at maximum potential.
Calculating Mechanical Advantage for Screws and Wedges
The mechanical advantage (MA) of a screw can be calculated using the formula:
MA = 2π × Length of the Incline / Pitch of the Thread.
The length of the incline is the distance between one thread and the next, while the pitch refers to the distance between two consecutive threads. For example, if the incline length is 20 cm and the pitch is 2 mm, the MA would be:
MA = 2π × 20 cm / 0.2 cm ≈ 62.83.
This indicates that the screw reduces the effort required to move an object by a factor of 62.83.
For wedges, the mechanical advantage depends on the ratio between the length of the slope and the width of the wedge. The formula for MA is:
MA = Length of the Slope / Width of the Wedge.
If a wedge has a slope length of 30 cm and a width of 5 cm, the MA is:
MA = 30 cm / 5 cm = 6.
This means the wedge multiplies the force applied by a factor of 6.
Both screws and wedges use the principle of inclined planes to multiply force, but their mechanical advantages depend on the dimensions and the configuration of the threads or slopes.
To calculate the effort required to move a load using a screw or wedge, divide the load by the mechanical advantage. For a load of 500 N and a screw with an MA of 62.83, the effort is:
Effort = 500 N / 62.83 ≈ 7.96 N.
Similarly, for a load of 600 N and a wedge with an MA of 6, the effort required is:
Effort = 600 N / 6 = 100 N.
Common Mistakes When Solving Simple Machine Problems
One common error is incorrectly identifying the force acting on the system. Ensure you use the correct force for calculations. For example, in the case of a pulley system, use the weight of the object, not just the applied force, in determining mechanical advantage.
Another mistake is miscalculating the mechanical advantage. For inclined planes, remember to use the sine of the angle rather than just the angle itself. The mechanical advantage for a wedge depends on both the slope length and the width of the wedge, so avoid using just one of these dimensions.
Incorrectly applying friction is also frequent. Many problems neglect the frictional force, assuming it’s negligible. Friction affects the effort required and should be considered in practical applications. The formula for calculating friction (F_friction = μ × N) needs to be applied to understand the true force required to move an object.
Confusing effort and load forces can lead to mistakes. Ensure you differentiate between the force applied to the machine (effort) and the force that the machine is lifting or moving (load). The mechanical advantage is a ratio of these two forces, not the same force in different contexts.
Lastly, failing to account for the direction of forces can lead to incorrect answers. Always carefully analyze the direction of forces, especially when dealing with systems like pulleys or levers, where forces can act in different directions depending on the configuration.
How to Use Formulas for Simple Machines in Real-World Scenarios
Start by determining the relevant forces in the system, such as the load and the effort. For inclined planes, use the formula:
Effort = Load × sin(θ)
where θ is the angle of the incline. This allows you to calculate the force required to lift an object using an inclined plane. For example, if an object weighs 200 N and the incline is 30°, the effort would be:
Effort = 200 N × sin(30°) = 200 N × 0.5 = 100 N.
For pulleys, calculate the mechanical advantage (MA) using:
MA = Number of rope segments supporting the load.
If a pulley system has three supporting ropes, the MA is 3, meaning the effort force is reduced by a factor of 3.
In lever systems, identify the location of the effort and load forces relative to the fulcrum. The formula is:
MA = Distance from Fulcrum to Effort / Distance from Fulcrum to Load.
For a lever with a distance of 5 meters from the fulcrum to the effort and 1 meter to the load, the MA is:
MA = 5 / 1 = 5.
This means the effort is reduced by a factor of 5.
For screws, calculate the mechanical advantage using:
MA = 2π × Length of the Incline / Pitch of the Thread.
For example, if the incline length is 25 cm and the pitch is 5 mm, the MA is:
MA = 2π × 25 cm / 0.5 cm ≈ 314.16.
Lastly, for wedges, use the formula:
MA = Length of Slope / Width of Wedge.
If the slope is 15 cm and the width is 3 cm, the MA is:
MA = 15 cm / 3 cm = 5.
These calculations apply directly to real-world situations like lifting heavy objects, opening doors, or using screws for construction, allowing for the determination of effort, mechanical advantage, and efficiency in each scenario.
