Complete Guide to Geometry Transformation Worksheet Solutions

To approach problems involving coordinate shifts, reflections, and rotations, a step-by-step method is crucial. Understanding the mechanics behind each type of change helps visualize the transformations clearly and apply them accurately. For instance, when translating points across a grid, focus on adjusting the x and y coordinates systematically without overcomplicating the process.

Another common task is performing rotations of shapes around a fixed point. It’s important to calculate the correct angle and determine the new positions of the vertices in relation to that center. Use a coordinate plane to track each shift. Similarly, dilations require adjusting the size of the shape while maintaining the overall proportion. Mastering these procedures will greatly enhance your problem-solving abilities.

Consulting the solution guide after completing each problem can highlight common errors and reinforce your understanding. By checking the results and comparing your method with the provided steps, you can confirm the accuracy of your work and identify areas for improvement. This approach leads to greater confidence in solving more complex tasks involving geometric manipulations.

Detailed Guide to Shape Manipulation Problem Solutions

For each manipulation task, follow these basic principles to ensure accuracy in your results:

• Translation: To move a shape, adjust the x and y coordinates of each point by the specified units. If a shape is to be moved 3 units to the right and 2 units up, add 3 to each x-coordinate and 2 to each y-coordinate of the vertices.
• Reflection: Reflect a shape over a given axis by reversing the relevant coordinate. For reflection over the x-axis, negate the y-coordinate of each point. For reflection over the y-axis, negate the x-coordinate.
• Rotation: To rotate a shape around a fixed point, calculate the new position of each point by applying the rotation matrix or using a protractor for a manual approach. For example, a 90-degree counterclockwise rotation swaps the coordinates (x, y) to (-y, x).
• Dilation: To resize a shape, multiply each coordinate by the scale factor. For a dilation with a scale factor of 2, each coordinate (x, y) becomes (2x, 2y). Ensure that the shape is resized uniformly and maintains proportionality.

After completing the tasks, check your work by verifying that each transformed point follows the correct geometric rule. For example, check that a reflected point lies symmetrically on the opposite side of the axis. Similarly, for rotations, verify the angle and direction of the shift. If needed, use graph paper or digital graphing tools to plot and confirm the results.

This approach will strengthen your understanding and accuracy in performing complex shape manipulations. Revisit any steps that caused confusion and review solutions to refine your skills.

Understanding Basic Shape Manipulation Techniques

Familiarizing yourself with fundamental operations on shapes is key to mastering spatial concepts. Below are the primary methods:

• Translation: Shift a shape’s position without altering its orientation or size. To move each point of a shape, add the specified values to the x and y coordinates. For example, to move a shape 4 units to the right and 3 units up, add 4 to every x-coordinate and 3 to every y-coordinate.
• Reflection: Flip a shape over a line, creating a mirror image. For reflection over the x-axis, reverse the sign of the y-coordinate. For the y-axis, reverse the x-coordinate.
• Rotation: Turn a shape around a fixed point by a specific angle. A 90-degree counterclockwise rotation, for example, switches the position of coordinates from (x, y) to (-y, x).
• Dilation: Resize a shape by a specific factor, either expanding or contracting it. To enlarge by a factor of 2, multiply every coordinate by 2. Similarly, to reduce by a factor of 0.5, multiply each coordinate by 0.5.

Each of these techniques involves straightforward mathematical rules that can be applied to any shape. Whether translating, reflecting, rotating, or dilating, ensure you follow the rules for each operation precisely. Using graphing tools can help visualize the changes and confirm that the operations are executed correctly.

How to Perform a Shift on a Coordinate Plane

To shift a shape on a coordinate plane, adjust each point’s position by adding a set value to the x and y coordinates. The movement depends on how much the figure needs to be moved along each axis.

• Identify the shift values: Determine how many units to move the figure horizontally (x-axis) and vertically (y-axis). For example, a shift of 3 units right and 2 units up would be represented by the values +3 and +2.
• Adjust the x and y coordinates: For every point (x, y) on the figure, apply the shift values. For a shift of 3 units right and 2 units up, the new coordinates would be (x+3, y+2).
• Check the result: After shifting all points, plot the new coordinates on the plane to confirm that the figure has been correctly moved.

For example, if the original point is (2, 5) and the shift is 3 units right and 2 units up, the new coordinates would be (2+3, 5+2) = (5, 7).

Reflections and Symmetry in Geometrical Figures

Reflections occur when a figure is flipped over a line, creating a mirror image. The line of reflection acts as the mirror, with each point on the figure mapping to a corresponding point on the opposite side of the line.

• Identify the line of reflection: This could be the x-axis, y-axis, or any line on the coordinate plane. The line divides the figure into two equal halves.
• Apply the reflection: For each point on the shape, measure the distance from the line of reflection. The reflected point will be the same distance away from the line but on the opposite side.
• Check the symmetry: A figure is symmetrical if it can be divided into two identical parts through the line of reflection. When a shape reflects, both parts should perfectly overlap when folded along the line.

For example, reflecting the point (3, 4) over the y-axis gives the point (-3, 4), since the x-coordinate changes sign but the y-coordinate remains the same.

Symmetry is an important concept in many geometric shapes. Regular polygons like squares, equilateral triangles, and circles exhibit high levels of symmetry, meaning they have multiple lines of reflection.

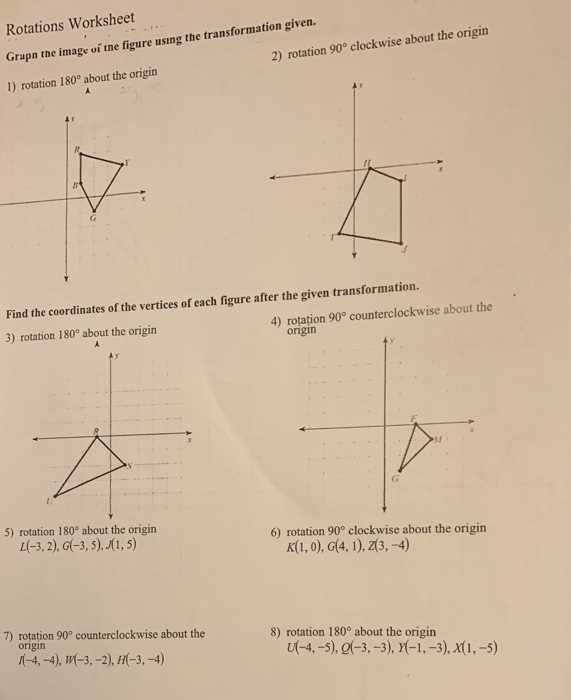

Rotation: Step-by-Step Instructions for Geometry Problems

To rotate a point or shape on the coordinate plane, follow these steps carefully:

1. Identify the center of rotation: This is the point around which the figure will rotate. Often, it’s the origin (0,0), but it can be any point on the plane.
2. Determine the angle of rotation: Decide how many degrees you want the shape to rotate. Common angles are 90°, 180°, 270°, and 360°, but other values are possible.
3. Use the rotation rules: Apply the appropriate formulas for the rotation:
   • 90° counterclockwise: (x, y) → (-y, x)
   • 180°: (x, y) → (-x, -y)
   • 270° counterclockwise (or 90° clockwise): (x, y) → (y, -x)
   • 360°: (x, y) → (x, y)
4. Plot the new coordinates: After applying the rotation rule, plot the new point on the coordinate plane to visualize the rotated figure.
5. Check the accuracy: Ensure the figure is rotated correctly by measuring the distance between the center of rotation and each vertex. All distances should remain the same as before the rotation.

For example, to rotate the point (3, 4) by 90° counterclockwise around the origin, use the rule (x, y) → (-y, x). The new point becomes (-4, 3).

Scaling and Dilations in Geometry Worksheets

To perform scaling or dilations, follow these steps:

1. Identify the center of dilation: The center is the point that remains fixed during the scaling process. It can be any point, but it is often the origin (0, 0) or a specific point on the shape.
2. Choose the scale factor: The scale factor determines how much the figure will be enlarged or reduced. If the scale factor is greater than 1, the figure enlarges; if it is less than 1, the figure shrinks. For example, a scale factor of 2 will double the size of the figure, while a scale factor of 0.5 will reduce it by half.
3. Apply the scale factor: Multiply the coordinates of each vertex of the figure by the scale factor. For example, if the original point is (x, y) and the scale factor is 2, the new point will be (2x, 2y).
4. Plot the dilated points: After applying the scale factor to all vertices, plot the new points on the coordinate plane. The shape will be either larger or smaller, but it will retain its orientation and proportions.
5. Verify the result: Check that the dilation is correct by ensuring that the center of dilation is fixed and the distances between corresponding points of the original and dilated shapes are proportional to the scale factor.

For example, to dilate a triangle with vertices (2, 3), (4, 5), and (6, 7) by a factor of 2, the new points will be (4, 6), (8, 10), and (12, 14).

Mapping Points and Graphs in Exercises

To map points in exercises, follow these straightforward steps:

1. Identify the points: Begin by noting the coordinates of each point involved in the exercise. For example, if the points are A(2, 3) and B(4, 5), these are the points to be plotted.
2. Apply the transformation: Depending on the task, apply the appropriate operation such as translation, rotation, reflection, or scaling. For instance, if the task is to translate the points by (2, 3), simply add 2 to the x-coordinate and 3 to the y-coordinate of each point.
3. Plot the new points: After applying the transformation, plot the new points on the graph. For example, translating A(2, 3) by (2, 3) results in A'(4, 6).
4. Connect the points (if applicable): For exercises involving shapes or lines, after mapping the points, connect them to form the corresponding figure. Ensure that each transformed point maintains its relative positioning and shape.
5. Check the graph: Verify that all points have been plotted correctly and that the transformation has been applied accurately. Confirm that the transformation has been applied to all relevant points and the figure appears as expected.

For example, if asked to reflect a triangle with vertices A(1, 2), B(3, 4), and C(5, 6) across the y-axis, the new points would be A'(-1, 2), B'(-3, 4), and C'(-5, 6).

Common Mistakes in Geometry Transformations and How to Avoid Them

One common mistake is applying the wrong direction during reflection. For example, when reflecting a figure over the x-axis, points should be mirrored across the x-axis, changing the y-coordinate sign. Avoid this error by carefully verifying the axis of reflection before making the transformation.

Another frequent issue occurs when rotating a figure without accurately determining the center of rotation. Without precise knowledge of the pivot point, the figure may not rotate as expected. To avoid this, always ensure the center of rotation is clearly identified and used to calculate the new positions of points.

Scaling mistakes often happen when the factor is misapplied. A common error is incorrectly multiplying the coordinates by the scaling factor. For example, if the factor is 2, each coordinate should be multiplied by 2, not added. Double-check the scaling factor before applying it to each point’s coordinates to maintain the correct proportions.

When performing translations, it’s easy to forget to apply the correct shift to each point. Ensure every coordinate is adjusted correctly by adding or subtracting the specified values. Missing a point in the shift can distort the final figure. Always check each point to confirm the transformation is applied to all necessary elements.

Lastly, during rotations, it’s crucial to ensure that angles are measured correctly. For example, rotating 90 degrees counterclockwise involves changing coordinates in a specific way. Mistakes in angle measurement can lead to incorrect placements. Use a protractor or calculator to confirm the exact degree of rotation for accuracy.

Using the Answer Key to Check Your Transformation Solutions

First, carefully compare each step of your solution with the provided solutions in the guide. Ensure you have followed the correct process for every operation, such as reflections, rotations, or scaling. For example, if a point has been shifted by specific units, check whether the new coordinates align with the reference answers.

Next, verify that you applied the correct transformations to all points. Sometimes, it’s easy to miss one or two points in a larger figure. Ensure that every coordinate has been adjusted consistently according to the transformation rule. Cross-check each point’s final position with the solution key to identify any discrepancies.

Check the direction of your transformations. A common mistake in many exercises is the incorrect application of direction, particularly when reflecting or rotating. If your results don’t match the provided solutions, review the direction of your movement to ensure that it aligns with the instructions.

If you are unsure about the accuracy of your solution, look for patterns in the solution set. A well-executed transformation should display consistent results. For instance, after rotating a figure, all corresponding points should be equidistant from the center of rotation. If your answer differs, recheck the rotation angle and center of rotation.

Lastly, when using an answer guide, remember that it’s a tool for learning, not just checking answers. Use the solution to understand where your approach may have gone wrong. This can help you better grasp the method for future exercises. For more information, consult resources like Khan Academy’s Geometry Section.
